AMQP Broker

Since the SimopsConnect project, the solution is using AMQP for messaging between components.

For now it's using LavinMQ at CloudAMQP.

Setup​

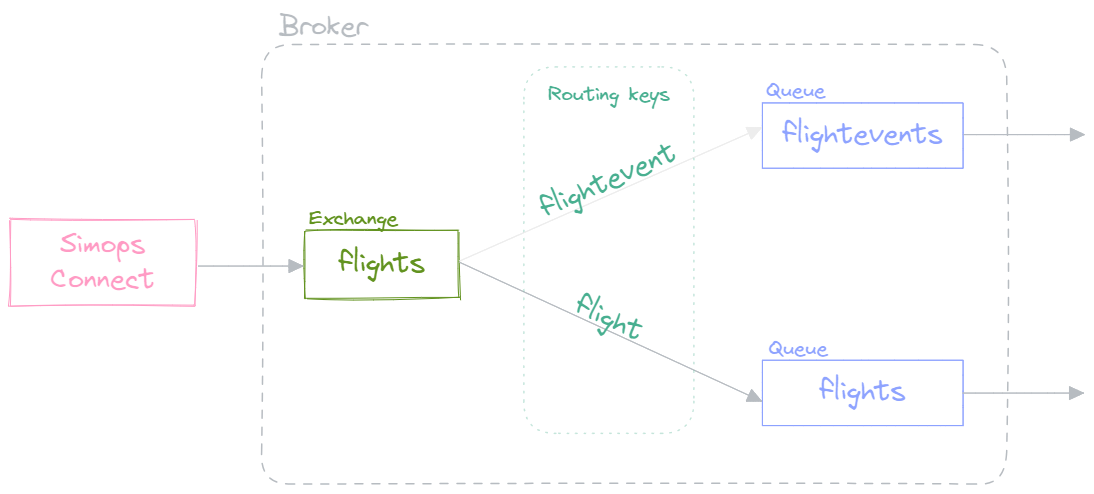

The SimopsConnect requires an exchange and two queues:

LavinMQ Manager​

  1. In Exchanges, add a new exchange flights.
  2. In Queues, create two queues flights and flightevents.
  3. Back in Exchanges, go to flights echange.
    1. Add a flight binding to queue flights
    2. Add a flightevent binding to queue flightevents

Local AMQP​

docker run -d --name simops-broker -p 5672:5672 -p 15672:15672 --restart=always cloudamqp/lavinmq:latest
